Part number	AAT2689
Manufacturer	Advanced Analogic Technologies
File Size	3.28 MB
Description	PMIC
Datasheet	AAT2689 Datasheet

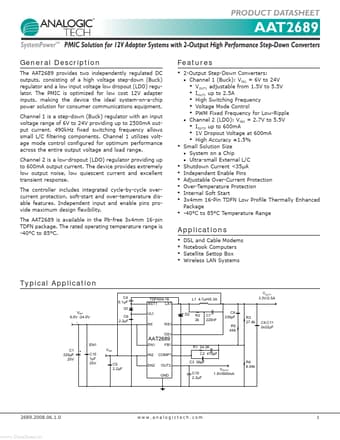

Additional preview pages of the AAT2689 datasheet.

Product details

Description

The AAT2689 provides two independently regulated DC outputs, consisting of a high voltage step-down (Buck) regulator and a low input voltage low dropout (LDO) regulator.

Features

Independent input and enable pins provide maximum design flexibility. The AAT2689 is available in the Pb-free 3x4mm 16-pin TDFN package. The rated operating temperature range is -40°C to 85°C. Features.
2-Output Step-Down Converters:.
Channel 1 (Buck): VIN1 = 6V to 24V.
VOUT1 adjustable from 1.5V to 5.5V.
IOUT1 up to 2.5A.
High Switching Frequency.
Voltage Mode Control.
PWM Fixed Frequency for Low-Ripple.
Channel 2 (LDO): VIN2 = 2.
