AAT2148 Datasheet - Skyworks

Fast Transient 1A Step-Down Converter

AAT2148 Features

* VIN Range: 2.7V to 5.5V

* Low Noise Light Load Mode

* Low Ripple PWM Mode

* VOUT Fixed or Adjustable from 0.6V to VIN

* 37μA No Load Quiescent Current

* Up to 98% Efficiency

* 1A Max Output Current

* 2MHz Switching Frequency

AAT2148 General Description

The AAT2148 SwitchReg is a 2MHz step-down converter with an input voltage range of 2.7V to 5.5V and output voltage as low as 0.6V. It is optimized to react quickly to a load variation. The AAT2148 incorporates a unique low noise architecture which reduces ripple and spectral noise. The AAT2148 is av.

AAT2148 Datasheet (1.02 MB)

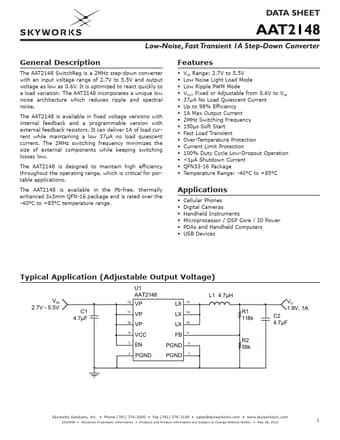

AAT2148 Datasheet Preview — Preview of AAT2148 PDF

Datasheet Details

Part number:

AAT2148

Manufacturer:

Skyworks

File Size:

1.02 MB

Description:

Fast transient 1a step-down converter.
