AAT2403B - Sixteen-Channel White LED Driver Solution

AAT2403B Description

PRODUCT SUMMARY AAT2403B Sixteen-Channel White LED Driver Solution with Full LED Current and Timing Control General .
The AAT2403B is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs.

AAT2403B Features

* VIN Range: 10.8V
* 28V
* 16 LED Current Sinks up to 150mA/ch ▪ ±1.5% Accuracy @ 25°C (61mA) ▪ ±2.0% Matching @ 25°C (61mA)
* SPI Interface ▪ Digitally Programmable Individual Channels ▪ Up to 30MHz Clock Speed ▪ Read/Write Registers
* High Resolution Digital

AAT2403B Applications

* 2D/3D Capable LCD TVs, Panels
* Large Size LCD TVs, Panels
* White LED Backlight The LED power voltage may be regulated by using the CSFBO (current sense feedback output) signal as feedback for the LED voltage regulator. This analog signal represents the highest VF string

📥 Download Datasheet

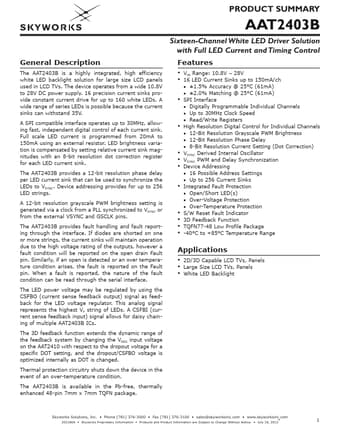

Preview of AAT2403B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2403B
Manufacturer
Skyworks
File Size
213.91 KB
Datasheet
AAT2403B-Skyworks.pdf
Description
Sixteen-Channel White LED Driver Solution
