AAT2405 - Six-Channel White LED Driver

AAT2405 Description

PRODUCT SUMMARY AAT2405 Six-Channel White LED Driver for LCD TV Edge Lighting General .
The AAT2405 is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs.

AAT2405 Features

* VIN Range: 10.8V
* 28V
* 6 LED Current Sinks up to 250mA/ch ▪ ±1.5% Accuracy @ 25°C (100mA) ▪ ±1.5% Matching @ 25°C (100mA)
* Maximum LED Current Set Resistor
* Linear Current Sink Calibration Input
* External PWM Dimming ▪ PWM Input Defined Period

AAT2405 Applications

* Converting LCD TV CCFL to LED Backlighting
* Large Size LCD TV Panels
* LCD Monitors
* Multiple String White LED Drive Applications
* White LED Backlighting Skyworks Solutions, Inc.
* Phone [781] 376-3000
* Fax [781] 376-3100
* sales

📥 Download Datasheet

Preview of AAT2405 PDF

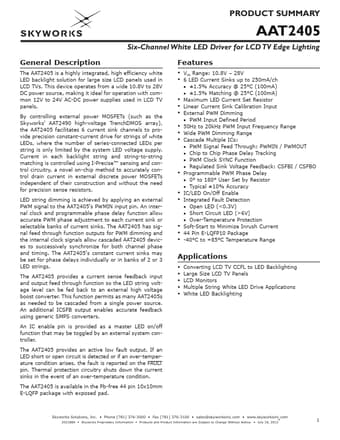

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2405
Manufacturer
Skyworks
File Size
233.34 KB
Datasheet
AAT2405-Skyworks.pdf
Description
Six-Channel White LED Driver
