AAT2315 - Step-Down Converter

Product Overview

AAT

AAT2315 Step-Down Converter by AAT - Datasheet Preview — Datasheet preview – AAT2315

Datasheet Details

Part number	AAT2315
Manufacturer	AAT
File Size	721.34 KB
Description	Step-Down Converter
Datasheet	AAT2315 Datasheet

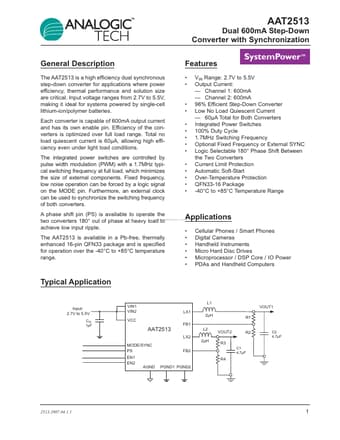

Additional preview pages of the AAT2315 datasheet.

Product details

Description

The AAT2513 is a high efficiency dual synchronous step-down converter for applications where power efficiency, thermal performance and solution size are critical.

Features

SystemPower™.
VIN Range: 2.7V to 5.5V Output Current:.
Channel 1: 600mA.
Channel 2: 600mA 96% Efficient Step-Down Converter Low No Load Quiescent Current.
60µA Total for Both Converters Integrated Power Switches 100% Duty Cycle 1.7MHz Switching Frequency Optional Fixed Frequency or External SYNC Logic Selectable 180° Phase Shift.
