AAT2504 - Adjustable 3-Channel Regulator

Product Overview

AAT

AAT2504 Adjustable 3-Channel Regulator by AAT - Datasheet Preview — Datasheet preview – AAT2504

Datasheet Details

Part number	AAT2504
Manufacturer	AAT
File Size	969.34 KB
Description	Adjustable 3-Channel Regulator
Datasheet	AAT2504 Datasheet

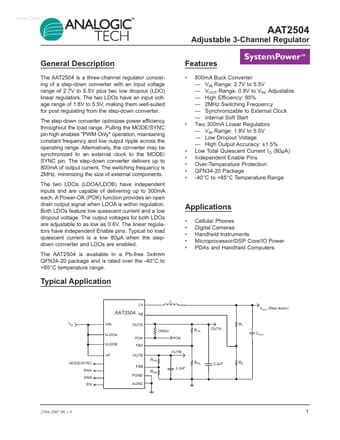

Additional preview pages of the AAT2504 datasheet.

Product details

Description

The AAT2504 is a three-channel regulator consisting of a step-down converter with an input voltage range of 2.7V to 5.5V plus two low dropout (LDO) linear regulators.

Features

SystemPower™.
800mA Buck Converter.
VIN Range: 2.7V to 5.5V.
VOUT Range: 0.9V to VIN, Adjustable.
High Efficiency: 95%.
2MHz Switching Frequency.
Synchronizable to External Clock.
Internal Soft Start Two 300mA Linear Regulators.
VIN Range: 1.8V to 5.5V.
Low Dropout Voltage.
High Output Accuracy: ±1.5% Low Total Quiescent Current IQ (80μA) Indep.
