AAT2511 - Step-Down DC/DC Converter

AAT2511 Description

AAT2511 Dual 600mA, 1MHz Step-Down DC/DC Converter General .
The AAT2511 is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family.

AAT2511 Features

* SystemPower™ Up to 97% Efficiency 25µA Quiescent Current Per Channel VIN Range: 2.7V to 5.5V VOUT Range: 0.6V to VIN Output Curr

AAT2511 Applications

* Cellular Phones Digital Cameras Handheld Instruments Microprocessor/DSP Core/IO Power PDAs and Handheld Computers Portable Media Players The AAT2511 is available in a Pb-free, thermallyenhanced 12-pin TDFN33 package, and is rated over the

📥 Download Datasheet

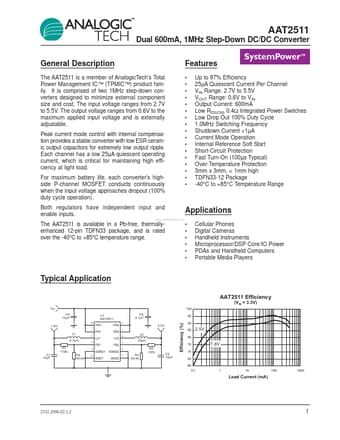

Preview of AAT2511 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2511
Manufacturer
AAT
File Size
495.03 KB
Datasheet
AAT2511_AAT.pdf
Description
Step-Down DC/DC Converter
