AAT2503 - Adjustable 3-Channel Regulator

Product Overview

AAT

AAT2503 Adjustable 3-Channel Regulator by AAT - Datasheet Preview — Datasheet preview – AAT2503

Datasheet Details

Part number	AAT2503
Manufacturer	AAT
File Size	1.03 MB
Description	Adjustable 3-Channel Regulator
Datasheet	AAT2503 Datasheet

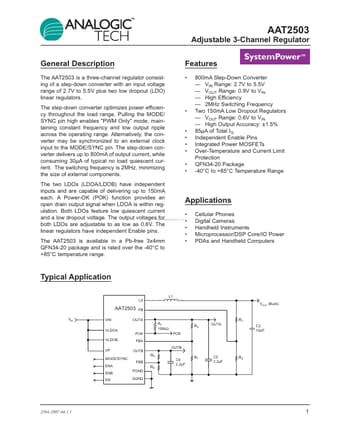

Additional preview pages of the AAT2503 datasheet.

Product details

Description

The AAT2503 is a three-channel regulator consisting of a step-down converter with an input voltage range of 2.7V to 5.5V plus two low dropout (LDO) linear regulators.

Features

SystemPower™.
800mA Step-Down Converter.
VIN Range: 2.7V to 5.5V.
VOUT Range: 0.9V to VIN.
High Efficiency.
2MHz Switching Frequency Two 150mA Low Dropout Regulators.
VOUT Range: 0.6V to VIN.
High Output Accuracy: ±1.5% 85µA of Total IQ Independent Enable Pins Integrated Power MOSFETs Over-Temperature and Current Limit Protection QFN34-20 Package -40°C to +85°C.
