AAT2505 Datasheet - AAT

AAT2505 - Step-Down Converter/Linear Regulator

The AAT2505 is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family.

It is a low dropout (LDO) linear regulator and a step-down converter with an input voltage range of 2.7V to 5.5V, making it ideal for applications with single cell lithium-ion / polymer batteries.

The LDO h

AAT2505 Features

* include low quiescent current, low dropout voltage, and a Power-OK (POK) open drain output signaling when VOUT is in regulation. The 600mA step-down converter is designed to operate with 1.4MHz of switching frequency, minimizing external component size and cost while maintaining a low 27µA no load q

AAT2505_AAT.pdf

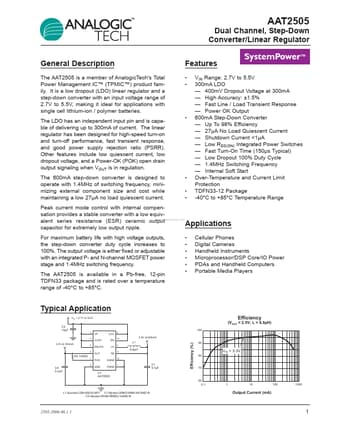

Preview of AAT2505 PDF
AAT2505 Datasheet Preview Page 2 AAT2505 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT2505

Manufacturer:

AAT

File Size:

789.38 KB

Description:

Step-down converter/linear regulator.
