AAT2522 Datasheet, Regulator, Skyworks

AAT2522 Features

  • Regulator
  • Dual 3.0A Peak Output Current Regulators
  • 2.7V to 5.5V Input Voltage Range
  • Adjustable Output Voltage (0.6V to VIN)
  • 100% Duty-Cycle, Low-Dropout Op

PDF File Details

Part number:

AAT2522

Manufacturer:

Skyworks

File Size:

1.66MB

Download:

📄 Datasheet

Description:

Step-down regulator. The AAT2522 is a SwitchReg, dual, high-current, stepdown converter with an input voltage range of 2.7V to 5.5V and an adjustable outp

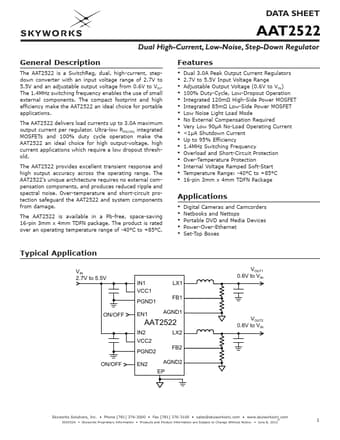

Datasheet Preview: AAT2522 📥 Download PDF (1.66MB)
Page 2 of AAT2522 Page 3 of AAT2522

AAT2522 Application

  • Applications The AAT2522 delivers load currents up to 3.0A maximum output current per regulator. Ultra-low RDS(ON) integrated MOSFETs and 100% duty
