AAT2510 - Step-Down DC-DC Converter

AAT2510 Description

AAT2510 Dual 400mA, 1MHz Step-Down DC-DC Converter General .
The AAT2510 is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family.

AAT2510 Features

* SysPwr™ Up to 96% Efficiency 25µA Quiescent Current Per Channel VIN Range: 2.7V to 5.5V Fixed VOUT Range: 0.6V to VIN Adjustable

AAT2510 Applications

* Cellular Phones Digital Cameras Handheld Instruments Microprocessor/DSP Core/IO Power PDAs and Handheld Computers Portable Media Players The AAT2510 is available in a thermally-enhanced 12-pin TDFN33 package, and is rated over the -40°C to

📥 Download Datasheet

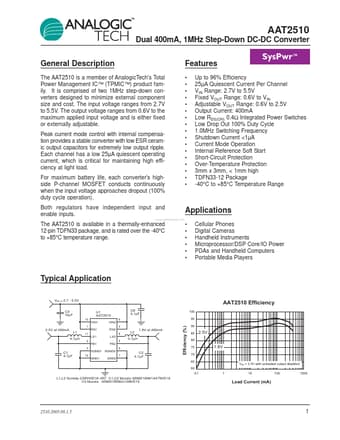

Preview of AAT2510 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2510
Manufacturer
AAT
File Size
640.87 KB
Datasheet
AAT2510_AAT.pdf
Description
Step-Down DC-DC Converter
