AAT2404 - Voltage-Variable Current Sourcing Boost Controller

The AAT2404 is a highly integrated high-efficiency variable voltage current sourcing boost controller for white LED backlight applications intended for use in large size LCD panels and LCD TVs.

To accommodate various LED backlighting configurations in both direct and edge lighting applications, the

AAT2404 Features

* VIN Range: 10.8V

* 28.0V

* Maximum VLED: 100V

* Up to 95% Boost Conversion Efficiency

* Integrated Current Sense Eliminates Need for Ballast Resistors

* Switching Frequency Options ▪ 400KHz Nominal ▪ Adjustable Range from 100kHz to 800kHz

AAT2404-SkyworksSolutions.pdf

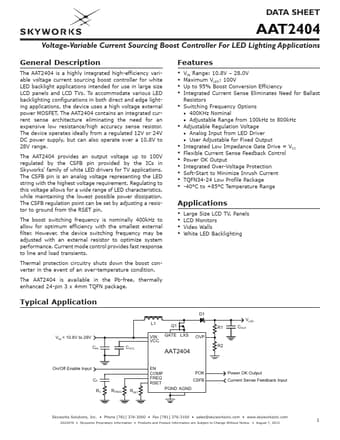

Preview of AAT2404 PDF
AAT2404 Datasheet Preview Page 2 AAT2404 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT2404

Manufacturer:

Skyworks Solutions

File Size:

920.47 KB

Description:

Voltage-variable current sourcing boost controller.
