AAT2689 Datasheet - Skyworks Solutions

AAT2689, PMIC Solution

DATA SHEET AAT2689 PMIC Solution for 12V Adapter Systems with 2-Output High Performance Step-Down Converters General .
The AAT2689 provides two independently regulated DC outputs, consisting of a high voltage step-down (Buck) regulator and a low input voltage low dropo.

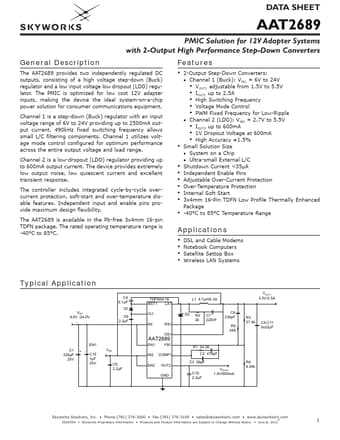

datasheet Preview Page 1 from Datasheet4u.com

AAT2689-SkyworksSolutions.pdf

AAT2689 Datasheet Preview — Preview of AAT2689 PDF

Datasheet Details

Part number:

AAT2689

Manufacturer:

Skyworks Solutions

File Size:

1.58 MB

Description:

PMIC Solution

Features

* Independent input and enable pins provide maximum design flexibility. The AAT2689 is available in the Pb-free 3x4mm 16-pin TDFN package. The rated operating temperature range is -40°C to 85°C. Features
* 2-Output Step-Down Converters: ▪ Channel 1 (Buck): VIN1 = 6V to 24V
* VOUT1 ad

Applications

* DSL and Cable Modems
* Notebook Computers
* Satellite Settop Box
* Wireless LAN Systems Typical Application VIN1 6.0V -24.0V 1 C4 0.1µF D1 C6 2.2µF C1 + 220µF 25V EN1 C15 1µF 25V VIN2 C5 2.2µF TDFN34-16 BST1 LX1 VL1 IN1 RS1 OS1 AAT2689 EN1 FB1 IN2 COMP1 EN2 OU
