AAT2430B - 16 Channel White LED Driver

AAT2430B Description

PRODUCT SUMMARY AAT2430B 16 Channel White LED Driver Solution with LED Current and Timing Control General .
The AAT2430B is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs.

AAT2430B Features

*  VIN Range: 10.8V
* 28V
*  16 Programmable LED Current Sinks ▪ ±1.5% Accuracy @ RSET = 3.01kΩ ▪ ±1.5% Matching @ RSET = 3.01kΩ
*  SPI Interface ▪ Digitally Programmable Individual Channels ▪ Up to 15MHz Clock Speed ▪ Read/Write Registers
*  High Resolution D

AAT2430B Applications

*  Large Size LCD TVs, Panels
*  White LED Backlight, Dynamic Edge LCD TV Backlight Skyworks Solutions, Inc.
* Phone [781] 376-3000
* Fax [781] 376-3100
* sales@skyworksinc. com
* www. skyworksinc. com 201968A
* Skyworks Proprietary Information

📥 Download Datasheet

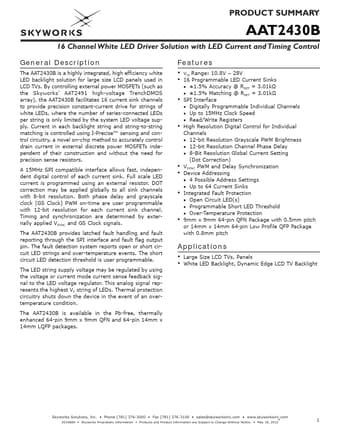

Preview of AAT2430B PDF
