AAT2430C Datasheet - Skyworks

16 Channel White LED Driver

AAT2430C Features

*  VIN Range: 10.8V

* 28V

*  16 Programmable LED Current Sinks ▪ ±1.5% Accuracy @ RSET = 3.01kΩ ▪ ±1.5% Matching @ RSET = 3.01kΩ

*  SPI Interface ▪ Digitally Programmable Individual Channels ▪ Up to 15MHz Clock Speed ▪ Read/Write Registers

*  High Resolution D

AAT2430C General Description

The AAT2430C is a highly integrated, high efficiency white LED backlight solution for large size LCD panels used in LCD TVs. By controlling external power MOSFETs (such as the Skyworks' AAT2491 high-voltage TrenchDMOS array), the AAT2430C facilitates 16 current sink channels to provide precision con.

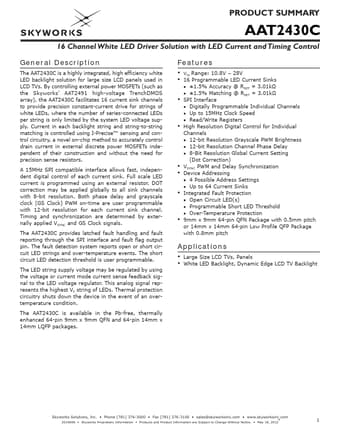

AAT2430C Datasheet (158.84 KB)

AAT2430C Datasheet Preview — Preview of AAT2430C PDF

Datasheet Details

Part number:

AAT2430C

Manufacturer:

Skyworks

File Size:

158.84 KB

Description:

16 channel white led driver.
