AAT4650 - 5V/3V PC Card Power Switch

Product Overview

Advanced Analogic Technologies

📥 Download Datasheet

AAT4650 5V/3V PC Card Power Switch by Advanced Analogic Technologies - Datasheet Preview — Datasheet preview – AAT4650

Datasheet Details

Part number	AAT4650
Manufacturer	Advanced Analogic Technologies
File Size	428.71 KB
Description	5V/3V PC Card Power Switch
Datasheet	AAT4650 Datasheet

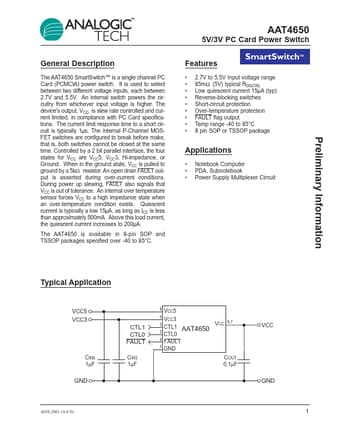

Additional preview pages of the AAT4650 datasheet.

Product details

Description

The AAT4650 SmartSwitch™ is a single channel PC Card (PCMCIA) power switch.

Features

SmartSwitch™ 2.7V to 5.5V Input voltage range 85mΩ (5V) typical RDS(ON) Low quiescent current 15µA (typ) Reverse-blocking switches Short-circuit protection Over-temperature protection FAULT flag output Temp range -40 to 85°C 8 pin SOP or TSSOP package Preliminary Information.
