AAT4651 - 5V/3V PC Card Power Switch

AAT4651 Description

5V/3V PC Card Power Switch General .
The AAT4651 SmartSwitch is a single channel PC card (PCMCIA) power switch.

AAT4651 Features

* SmartSwitch™ 2.7V to 5.5V Input Voltage Range 80mΩ (5V) Typical RDS(ON) Low Quiescent Current: 15µA (Typ) Reverse-Blocking Switches Short-Circuit Protection Over-Temperature Protection FAULT Flag Output Tempe

AAT4651 Applications

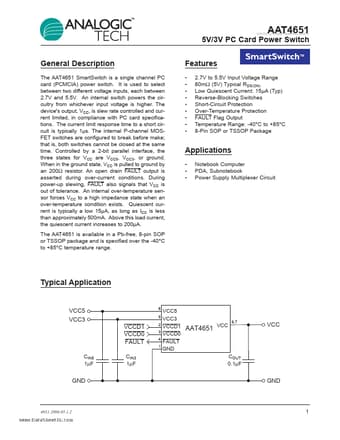

* Notebook Computer PDA, Subnotebook Power Supply Multiplexer Circuit Typical Application VCC5 VCC3 VCCD1 VCCD0 FAULT CIN5 1μF CIN3 1μF 8 5 2 3 4 1 VCC5 VCC3 VCCD1 VCCD0 FAULT GND AAT4651 VCC 6,7 VCC COUT 0.1μF GND GND 4651.2006.05.1.2 1 5V/3V PC Card Power
