BL1005-05A5425T

Multilayer Chip Baluns

BL1005-05A5425T Features

*  Monolithic SMD with small, low-profile and light-weight type. Applications 4.9 ~ 5.95 GHz wireless communication systems. Specifications Frequency Unbalanced Balance Part Number Range Impedance Impedance (MHz) (ohm) (ohm) Insertion Loss (dB) BL100505A5425_ 4900 ~ 5950 Q’ty/Reel (pcs) Op

BL1005-05A5425T Datasheet (108.03 KB)

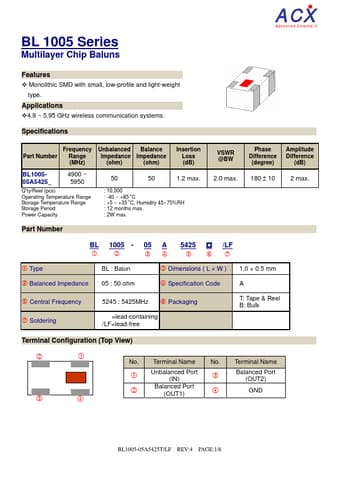

Preview of BL1005-05A5425T PDF

Datasheet Details

Part number:

BL1005-05A5425T

Manufacturer:

Advanced Ceramic X

File Size:

108.03 KB

Description:

Multilayer chip baluns.
