BL1005-05E2450B, BL1005-05E2450T Multilayer Chip Baluns

Advanced Ceramic X

Description

BL 1005 Series Multilayer Chip Baluns ACX Advanced Ceramic X .

📥 Download Datasheet

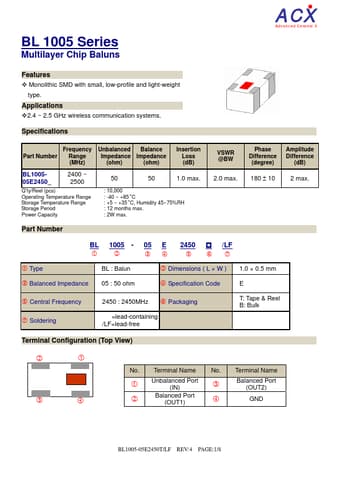

BL1005-05E2450B Datasheet Preview — This datasheet PDF includes multiple part numbers: BL1005-05E2450B, BL1005-05E2450T. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BL1005-05E2450B, BL1005-05E2450T
Manufacturer: Advanced Ceramic X
File Size: 107.73 KB
Datasheet: BL1005-05E2450T-AdvancedCeramicX.pdf
Description: Multilayer Chip Baluns
Note: This datasheet PDF includes multiple part numbers: BL1005-05E2450B, BL1005-05E2450T.
Please refer to the document for exact specifications by model.

Applications

* 2.4 ~ 2.5 GHz wireless communication systems. Specifications Frequency Unbalanced Balance Part Number Range Impedance Impedance (MHz) (ohm) (ohm) Insertion Loss (dB) BL100505E2450_ 2400 ~ 2500 Q’ty/Reel (pcs) Operating Temperature Range Storage Temperature Range Storage Period Power Capac
