ACT9200 Datasheet - Advanced Crystal Technology

ACT9200 MINIATURE LOW PROFILE SURFACE MOUNT PACKAGE

Tel : Fax : email : +44 118 979 1238 +44 118 979 1283 info@actcrystals.com ACT9200 The ACT9200 family is a miniature, low profile SMD package, with a ceramic base utilising a seam welded metal lid for high reliability and better long-term stability. The metal lid is grounded through the package to assist with EMI emission reductions. This 7x5mm device is available as the ACT9200 in both 3V3 and 5V0. 1V8 and 2V5 versions are available as ACT9200L (See ACT9200L data sheet). A 32.768kHz version i.

ACT9200_AdvancedCrystalTechnology.pdf

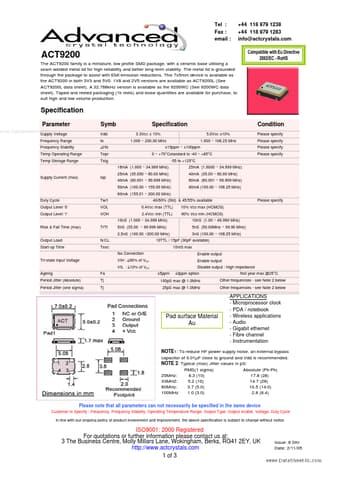

Preview of ACT9200 PDF
ACT9200 Datasheet Preview Page 2 ACT9200 Datasheet Preview Page 3

Datasheet Details

Part number:

ACT9200

Manufacturer:

Advanced Crystal Technology

File Size:

127.95 KB

Description:

Miniature low profile surface mount package.
