ACT9200L Datasheet - Advanced Crystal Technology

ACT9200L MINIATURE LOW PROFILE SURFACE MOUNT PACKAGE

Tel : Fax : email : +44 118 979 1238 +44 118 979 1283 info@actcrystals.com ACT9200L The ACT9200 family is a miniature, low profile SMD package, with a ceramic base utilising a seam welded metal lid for high reliability and better long-term stability. The metal lid is grounded through the package to assist with EMI emission reductions. This 7x5mm device is available as the ACT9200 in both 3V3 and 5V0 (see ACT9200 datasheet). A 32.768kHz version is available as the 9200WC (See 9200WC data sheet).

ACT9200L_AdvancedCrystalTechnology.pdf

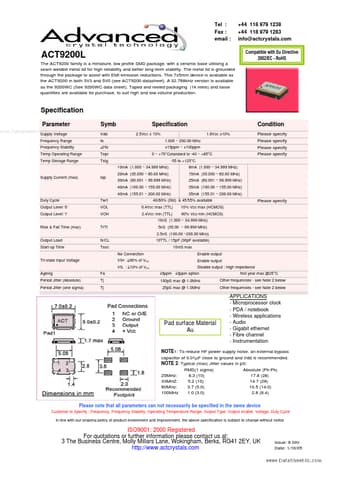

Preview of ACT9200L PDF
ACT9200L Datasheet Preview Page 2 ACT9200L Datasheet Preview Page 3

Datasheet Details

Part number:

ACT9200L

Manufacturer:

Advanced Crystal Technology

File Size:

127.64 KB

Description:

Miniature low profile surface mount package.
