ALD114804A

QUAD/DUAL N-CHANNEL MOSFET ARRAY

ALD114804A Features

* Depletion mode (normally ON)

* Precision Gate Threshold Voltages: -0.40V +/-0.02V

* Nominal RDS(ON) @ VGS = 0.0V of 5.4KΩ

* Matched MOSFET-to-MOSFET characteristics

* Tight lot-to-lot parametric control

* Low input capacitance

* VGS(th) match

ALD114804A General Description

APPLICATIONS ALD114804A/ALD114804/ALD114904A/ALD114904 are high precision monolithic quad/dual depletion mode N-Channel MOSFETs matched at the factory using ALD’s proven EPAD® CMOS technology. These devices are intended for low voltage, small signal applications. They are excellent functional repl.

ALD114804A Datasheet (107.17 KB)

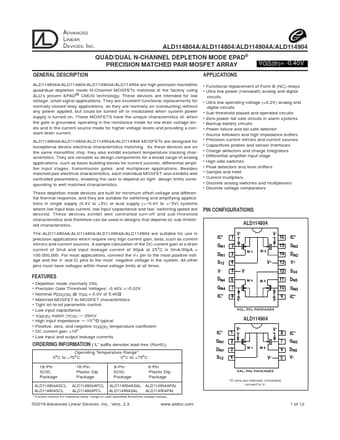

Preview of ALD114804A PDF

Datasheet Details

Part number:

ALD114804A

Manufacturer:

Advanced Linear Devices

File Size:

107.17 KB

Description:

Quad/dual n-channel mosfet array.
ADVANCED LINEAR DEVICES, INC. e TM EPAD ® ENAB L E D ALD114804A/ALD114804/ALD114904A/ALD114904 QUAD/DUAL N-CHANNEL DEPLETION MODE EPAD® PRECIS.
