ALD1801A

8 BIT MICROPOWER MULTIPLYING D/A CONVERTER

Advanced Linear Devices

ALD1801A Features

* Low voltage 3V to 12V operation Low power 1.8mW max @ 3.3V Single supply operation (5V or 3.3V) Direct CMOS logic interface Complementary current outputs Nonlinearity to 0.1% max over temperature range

* High input impedance

ALD1801A General Description

The ALD1801 is an 8-bit monolithic current output digital to analog converter designed to provide low power, low operating voltage and simple operation. It offers industry pin configuration of DAC-08 types, and is intended for a wide range of digital to analog conversion and control applications in .

ALD1801A Datasheet (50.57 KB)

Rating: 1 ★ (3 votes)

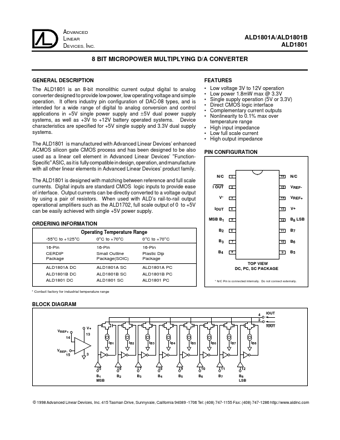

ALD1801A Datasheet Preview — Preview of ALD1801A PDF

Datasheet Details

Part number:

ALD1801A

Manufacturer:

Advanced Linear Devices

File Size:

50.57 KB

Description:

8 bit micropower multiplying d/a converter.
