ALD18F48-SL, ALD-18F Datasheet - Emerson

ALD18F48-SL DC-DC / Intermediate Bus Converter

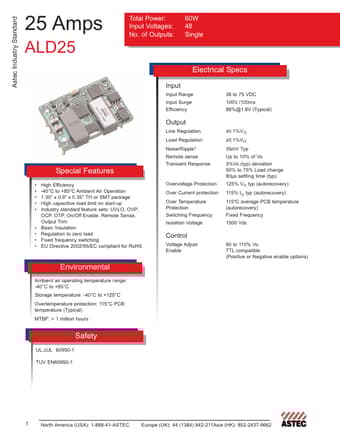

Astec Industry Standard 25 Amps ALD25 Total Power: Input Voltages: No. of Outputs: 60W 48 Single Electrical Specs Input Input Range Input Surge Efficiency 36 to 75 VDC 100V /100ms 88%@1.8V (Typical) Output Line Regulation Load Regulation Noise/Ripple1 Remote sense Transient Response ±0.1%VO ±0.1%VO 35mV Typ Up to 10% of Vo 3%Vo (typ) deviation 50% to 75% Load change 80µs settling time (typ) 125% VO typ (autorecovery) 115% IO typ (autorecovery) 115ºC average PCB temperature (autorecovery) Fi.

ALD18F48-SL Features

* High Efficiency -40°C to +85°C Ambient Air Operation 1.30” x 0.9" x 0.35" TH or SMT package High capacitive load limit on start-up Industry standard feature sets: UVLO, OVP, OCP, OTP, On/Off Enable, Remote Sense, Output Trim Basic Insulation Regulati

ALD-18F-48.pdf

ALD18F48-SL Datasheet Preview — This datasheet PDF includes multiple part numbers: ALD18F48-SL, ALD-18F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ALD18F48-SL, ALD-18F

Manufacturer:

Emerson

File Size:

324.37 KB

Description:

Dc-dc / intermediate bus converter.

Note:

This datasheet PDF includes multiple part numbers: ALD18F48-SL, ALD-18F.
Please refer to the document for exact specifications by model.
