ALD2711 DUAL MICROPOWER PRECISION RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER

ALD2711 Description

ADVANCED LINEAR DEVICES, INC.ALD2711A/ALD2711B ALD2711 DUAL MICROPOWER PRECISION RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER GENERAL .
The ALD2711A/ALD2711B/ALD2711 is a dual monolithic CMOS micropower precision high slew rate operational amplifier intended for a broad range of analog.

ALD2711 Features

* combined with extremely low input currents, high open loop voltage gain, high useful bandwidth, and slew rate make the ALD2711A/ALD2711B/ALD2711 a versatile, micropower operational amplifier. The ALD2711A/ALD2711B/ALD2711 with on-chip offset voltage trimming allows the device to be used without nul

ALD2711 Applications

* using ±1V to ±5V dual power supply systems, as well as +2V to +10V battery operated systems. All device characteristics are specified for +5V single supply or ±2.5V dual supply systems. Typical supply current is 200µA at 5V supply voltage. It is manufactured with Advanced Linear Devices' enhanced AC

📥 Download Datasheet

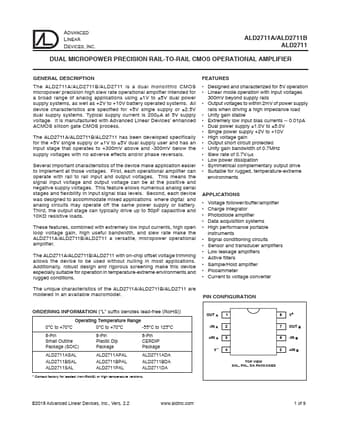

Preview of ALD2711 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ALD2711
Manufacturer
Advanced Linear Devices
File Size
469.53 KB
Datasheet
ALD2711-AdvancedLinearDevices.pdf
Description
DUAL MICROPOWER PRECISION RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER
