ALD2711B, ALD2711, DUAL MICROPOWER PRECISION RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER

ADVANCED LINEAR DEVICES, INC.ALD2711A/ALD2711B ALD2711 DUAL MICROPOWER PRECISION RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER GENERAL .
The ALD2711A/ALD2711B/ALD2711 is a dual monolithic CMOS micropower precision high slew rate operational amplifier intended for a broad range of analog.

ALD2711-AdvancedLinearDevices.pdf

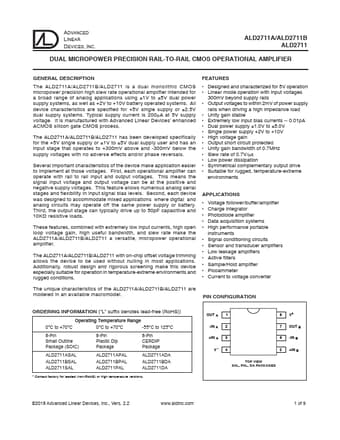

ALD2711B Datasheet Preview — This datasheet PDF includes multiple part numbers: ALD2711B, ALD2711. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ALD2711B, ALD2711

Manufacturer:

Advanced Linear Devices

File Size:

469.53 KB

Description:

DUAL MICROPOWER PRECISION RAIL-TO-RAIL CMOS OPERATIONAL AMPLIFIER

Note:

This datasheet PDF includes multiple part numbers: ALD2711B, ALD2711.
Please refer to the document for exact specifications by model.

Features

* combined with extremely low input currents, high open loop voltage gain, high useful bandwidth, and slew rate make the ALD2711A/ALD2711B/ALD2711 a versatile, micropower operational amplifier. The ALD2711A/ALD2711B/ALD2711 with on-chip offset voltage trimming allows the device to be used without nul

Applications

* using ±1V to ±5V dual power supply systems, as well as +2V to +10V battery operated systems. All device characteristics are specified for +5V single supply or ±2.5V dual supply systems. Typical supply current is 200µA at 5V supply voltage. It is manufactured with Advanced Linear Devices' enhanced AC
