27C020 Datasheet - Advanced Micro Devices

27C020 2 Megabit (256 K x 8-Bit) CMOS EPROM

FINAL Am27C020 2 Megabit (256 K x 8-Bit) CMOS EPROM DISTINCTIVE CHARACTERISTICS s Fast access time Speed options as fast as 55 ns s Low power consumption 100 µA maximum CMOS standby current s JEDEC-approved pinout Plug in upgrade of 1 Mbit EPROM Easy upgrade from 28-pin JEDEC EPROMs s Single +5 V power supply s ±10% power supply tolerance standard s 100% Flashrite™ programming Typical programming time of 32 seconds s Latch-up protected to 100 mA.

27C020 Features

* fast single address location programming. Products are available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages. Data can be typically accessed in less than 55 ns, allowing high-performance microprocessors to operate without any WAIT states. T

27C020 Datasheet (172.75 KB)

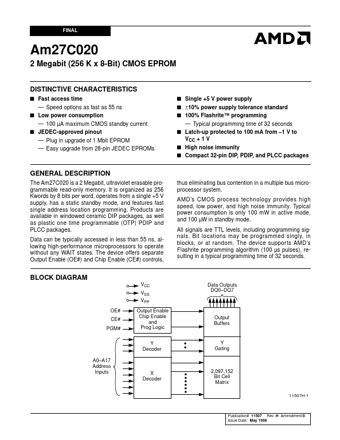

Preview of 27C020 PDF
27C020 Datasheet Preview Page 2 27C020 Datasheet Preview Page 3

Datasheet Details

Part number:

27C020

Manufacturer:

Advanced Micro Devices

File Size:

172.75 KB

Description:

2 megabit (256 k x 8-bit) cmos eprom.
