27C080 - 8-Megabit 1M x 8 UV Erasable CMOS EPROM

Product Overview

ATMEL

Datasheet Details

Part number	27C080
Manufacturer	ATMEL
File Size	167.02 KB
Description	8-Megabit 1M x 8 UV Erasable CMOS EPROM
Datasheet	27C080 Datasheet

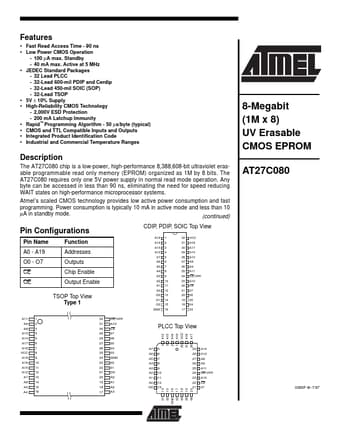

Additional preview pages of the 27C080 datasheet.

Product details

Description

The AT27C080 chip is a low-power, high-performance 8,388,608-bit ultraviolet erasable programmable read only memory (EPROM) organized as 1M by 8 bits.

Features

Fast Read Access Time - 90 ns.
Low Power CMOS Operation.
- 100 µA max. Standby - 40 mA max. Active at 5 MHz JEDEC Standard Packages - 32 Lead PLCC - 32-Lead 600-mil PDIP and Cerdip - 32-Lead 450-mil SOIC (SOP) - 32-Lead TSOP 5V ± 10% Supply High-Reliability CMOS Technology - 2,000V ESD Protection - 200 mA Latchup Immunity Rapid™ Programming Algorithm - 50 µs/byte (typical) CMOS and TTL Compatible Inputs and Outputs Integrated Product Identification Code Industrial and.
