27C800

8-Megabit 512K x 16 or 1024K x 8 UV Erasable EPROM

27C800 Features

* Read Access Time - 100 ns Word-wide or Byte-wide Configurable 8-Megabit Flash and Mask ROM Compatable Low Power CMOS Operation - 100 µA Maximum Standby - 50 mA Maximum Active at 5 MHz Wide Selection of JEDEC Standard Packages - 42-Lead 600 mil Cerdip

27C800 General Description

The AT27C800 is a low-power, high performance 8,388,608-bit UV erasable programmable read only memory (EPROM) organized as either 512K by 16 or 1024K by 8 bits. It requires a single 5V power supply in normal read mode operation. Any word can be accessed in less than 100 ns, eliminating the need for .

27C800 Datasheet (177.55 KB)

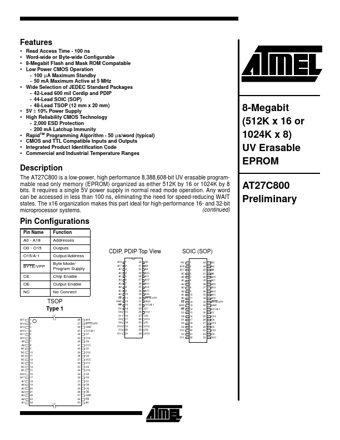

Preview of 27C800 PDF

Datasheet Details

Part number:

27C800

Manufacturer:

ATMEL

File Size:

177.55 KB

Description:

8-megabit 512k x 16 or 1024k x 8 uv erasable eprom.
