27C801

8 Mbit 1Mb x 8 UV EPROM and OTP EPROM

27C801 Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

27C801 General Description

The M27C801 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8 bits. The FDIP32W (window ceramic f.

27C801 Datasheet (108.83 KB)

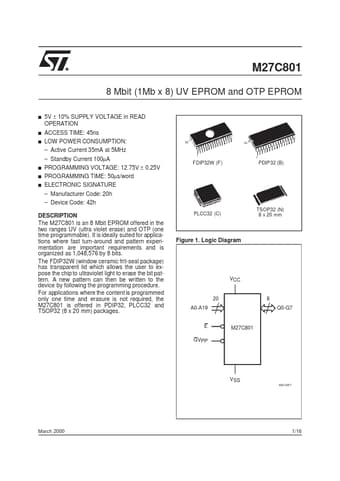

Preview of 27C801 PDF

Datasheet Details

Part number:

27C801

Manufacturer:

STMicroelectronics ↗

File Size:

108.83 KB

Description:

8 mbit 1mb x 8 uv eprom and otp eprom.
M27C801 8 Mbit (1Mb x 8) UV EPROM and OTP EPROM s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION ACCESS TIME: 45ns LOW POWER CONSUMPTION:

* Active.
