27C2001, 2 Mbit 256Kb x 8 UV EPROM and OTP EPROM

M27C2001 2 Mbit (256Kb x 8) UV EPROM and OTP EPROM s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION FAST ACCESS TIME: 55ns LOW POWER CONSUMPTION: .
The M27C2001 is a high speed 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable).

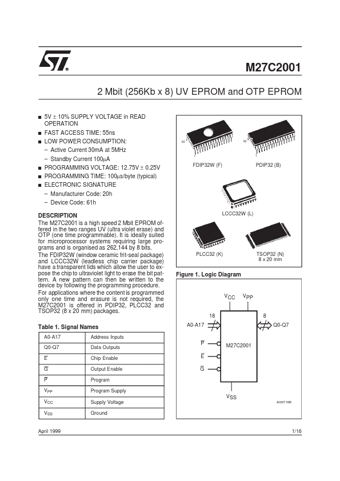

datasheet Preview Page 1 from Datasheet4u.com

27C2001_STMicroelectronics.pdf

27C2001 Datasheet Preview — Preview of 27C2001 PDF

Datasheet Details

Part number:

27C2001

Manufacturer:

STMicroelectronics ↗

File Size:

113.76 KB

Description:

2 Mbit 256Kb x 8 UV EPROM and OTP EPROM

Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

Applications

* where the content is programmed only one time and erasure is not required, the M27C2001 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages. Table 1. Signal Names A0-A17 Q0-Q7 E G P VPP VCC VSS Address Inputs Data Outputs Chip Enable Output Enable Program Program Supply Supply Voltage Groun
