27C240 - NM27C240

Product Overview

Part number	27C240
Manufacturer	ETC
File Size	105.88 KB
Description	NM27C240
Datasheet	27C240 Datasheet

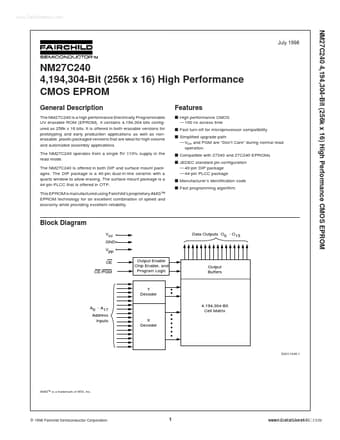

Additional preview pages of the 27C240 datasheet.

The NM27C240 is a high performance Electrically Programmable UV erasable ROM (EPROM).

s High performance CMOS.
100 ns access time s Fast turn-off for microprocessor compatibility s Simplified upgrade path.
VPP and PGM are “Don’t Care” during normal read operation s Compatible with 27240 and 27C240 EPROMs s JEDEC standard pin configuration.
40-pin DIP package.
44-pin PLCC package s Manufacturer’s identification code s Fast programming algorithm Block Diagram Vcc GND Vpp OE CE/PGM Output Enable Chip Enable, and Program Logic Data Outputs O0 - O1.
