27C2001 1 Mbit 128Kb x8 UV EPROM and OTP EPROM

27C2001 Description

M27C2001 2 Mbit (256Kb x 8) UV EPROM and OTP EPROM s 5V ± 10% SUPPLY VOLTAGE in READ OPERATION FAST ACCESS TIME: 55ns LOW POWER CONSUMPTION: .
The M27C2001 is a high speed 2 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable).

27C2001 Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

27C2001 Applications

* where the content is programmed only one time and erasure is not required, the M27C2001 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages. Table 1. Signal Names A0-A17 Q0-Q7 E G P VPP VCC VSS Address Inputs Data Outputs Chip Enable Output Enable Program Program Supply Supply Voltage Groun

📥 Download Datasheet

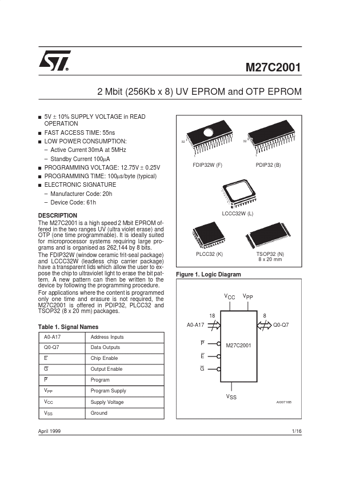

Preview of 27C2001 PDF
datasheet Preview Page 2 datasheet Preview Page 3
