27C4096

4-Megabit 256K x 16 OTP EPROM

27C4096 Features

* Fast Read Access Time - 55 ns

* Low Power CMOS Operation

* 100 µA Maximum Standby

* 40 mA Maximum Active at 5 MHz JEDEC Standard Packages

* 40-Lead 600 mil PDIP

* 44-Lead PLCC

* 40-Lead TSOP (10 mm x 14 mm) Direct Upgrade from 512K

27C4096 General Description

The AT27C4096 is a low-power, high-performance 4,194,304-bit one-time programmable read only memory (OTP EPROM) organized 256K by 16 bits. It requires a single 5V power supply in normal read mode operation. Any word can be accessed in less than 55 ns, eliminating the need for speed-reducing WAIT sta.

27C4096 Datasheet (254.02 KB)

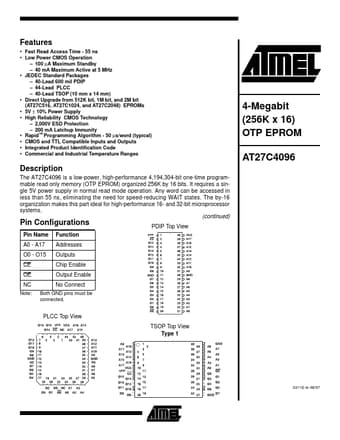

Preview of 27C4096 PDF

Datasheet Details

Part number:

27C4096

Manufacturer:

ATMEL

File Size:

254.02 KB

Description:

4-megabit 256k x 16 otp eprom.
