27C4096

256K X 16 ELECTRICALLY ERASABLE EPROM

27C4096 Features

* High speed access time:

* 120/150 nS (max.) Read operating current: 30 mA (max.) Erase/Programming operating current 30 mA (max.) Standby current: 100 µA (max.) Single 5V power supply

* +14V erase/+12V programming voltage

* Fully stat

27C4096 Datasheet (230.18 KB)

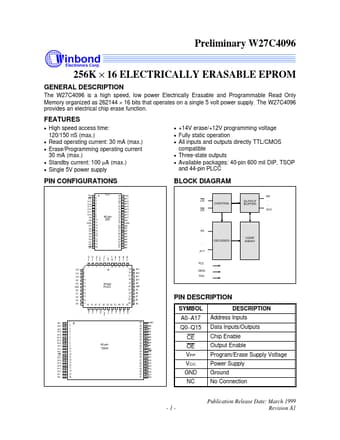

Preview of 27C4096 PDF

Datasheet Details

Part number:

27C4096

Manufacturer:

Winbond

File Size:

230.18 KB

Description:

256k x 16 electrically erasable eprom.
