27C16

UV Erasable CMOS PROM Military Qualified

27C16 Features

* Y Y Y Y Y Y Y Y Y Y Access time down to 450 ns Low CMOS power consumption Active Power 26 25 mW max Standby Power 0 53 mW max (98% savings) Performance compatible to NSC800TM CMOS microprocessor Single 5V power supply Pin compatible to MM2716 and higher density EPROMs Static no clocks required TT

27C16 General Description

The 27C16 is a high speed 16K UV erasable and electrically reprogrammable CMOS EPROM ideally suited for applications where fast turnaround pattern experimentation and low power consumption are important requirements www.DataSheet4U.com The 27C16 is packaged in a 24-pin dual-in-line package with tran.

27C16 Datasheet (147.11 KB)

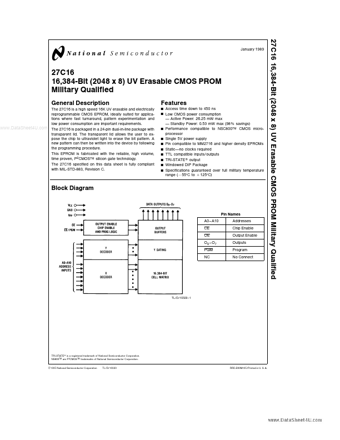

Preview of 27C16 PDF

Datasheet Details

Part number:

27C16

Manufacturer:

National Semiconductor

File Size:

147.11 KB

Description:

Uv erasable cmos prom military qualified.
27C16 16 384-Bit (2048 x 8) UV Erasable CMOS PROM Military Qualified January 1989 27C16 16 384-Bit (2048 x 8) UV Erasable CMOS PROM Military Qualifi.
