AM29F002, AM29F002N Datasheet - Advanced Micro Devices

AM29F002 2 Megabit CMOS 5.0 Volt-only Boot Sector Flash Memory

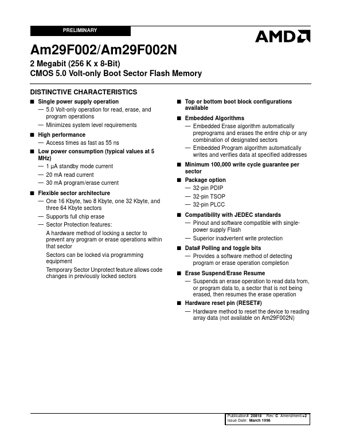

PRELIMINARY Am29F002/Am29F002N 2 Megabit (256 K x 8-Bit) CMOS 5.0 Volt-only Boot Sector Flash Memory DISTINCTIVE CHARACTERISTICS s Single power supply operation 5.0 Volt-only operation for read, erase, and program operations Minimizes system level requirements s High performance Access times as fast as 55 ns s Low power consumption (typical values at 5 MHz) 1 µA standby mode current 20 mA read current 30 mA program/erase current s Fle.

AM29F002 Features

* A hardware method of locking a sector to prevent any program or erase operations within that sector Sectors can be locked via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors s Top or bottom boot block configurations available s Embedded Alg

AM29F002N-AdvancedMicroDevices.pdf

AM29F002 Datasheet Preview — This datasheet PDF includes multiple part numbers: AM29F002, AM29F002N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AM29F002, AM29F002N

Manufacturer:

Advanced Micro Devices

File Size:

215.51 KB

Description:

2 megabit cmos 5.0 volt-only boot sector flash memory.

Note:

This datasheet PDF includes multiple part numbers: AM29F002, AM29F002N.
Please refer to the document for exact specifications by model.
