AM29F010A Uniform Sector Flash Memory

The Am29F010A is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The Am29F010A is offered in 32-pin PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not r.

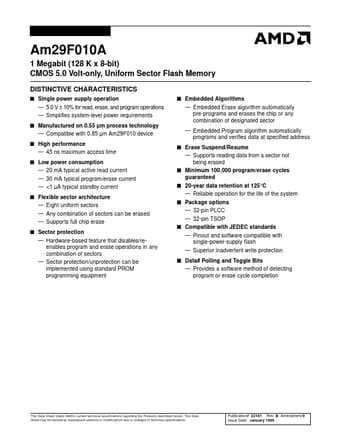

Am29F010A 1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only, Uniform Sector Flash Memory DISTINCTIVE CHARACTERISTICS s Single power supply operation 5.0 V ± 10% for read, erase, and program operations Simplifies system-level power requirements s Manufactured on 0.55 µm process technology Compatible with 0.85 µm Am29F010 device s High performance 45 ns maximum access time s Low power consumption 20 mA typical active read current 30 mA typica.

AM29F010A Features

* of the Am29F010, which was manufactured using 0.85 µm process technology. In addition, the Am29F010A offers the erase suspend/erase resume feature. The standard device offers access times of 45, 55, 70, 90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate

AM29F010A-AdvancedMicroDevices.pdf

AM29F010A Datasheet Preview — Preview of AM29F010A PDF

Datasheet Details

Part number:

AM29F010A

Manufacturer:

Advanced Micro Devices

File Size:

184.98 KB

Description:

Uniform sector flash memory.
