AM29F016B Uniform Sector Flash Memory

The Am29F016B is a 16 Mbit, 5.0 volt-only Flash memory organized as 2,097,152 bytes. The 8 bits of data appear on DQ0 *DQ7. The Am29F016B is offered in 48-pin and 40-pin TSOP, and 44-pin SO packages. The device is also available in Known Good Die (KGD) form. For more information, refer to pub.

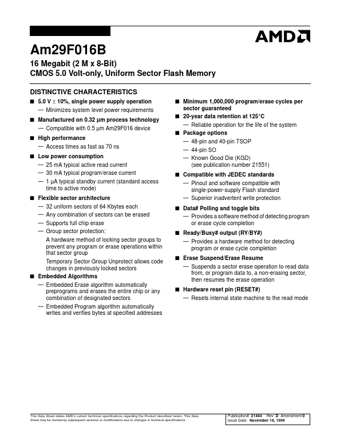

Am29F016B 16 Megabit (2 M x 8-Bit) CMOS 5.0 Volt-only, Uniform Sector Flash Memory DISTINCTIVE CHARACTERISTICS s 5.0 V ± 10%, single power supply operation Minimizes system level power requirements s Manufactured on 0.32 µm process technology Compatible with 0.5 µm Am29F016 device s High performance Access times as fast as 70 ns s Low power consumption 25 mA typical active read current 30 mA typical program/erase current 1 µA typical s.

AM29F016B Features

* of the Am29F016, which was manufactured using 0.5 µm process technology. The standard device offers access times of 70, 90, 120, and 150 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention, the device has separate chip enable (CE#), write enable (WE#),

AM2-9F016B.pdf

AM29F016B Datasheet Preview — This datasheet PDF includes multiple part numbers: AM29F016B, AM2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AM29F016B, AM2

Manufacturer:

Advanced Micro Devices

File Size:

798.61 KB

Description:

Uniform sector flash memory.

Note:

This datasheet PDF includes multiple part numbers: AM29F016B, AM2.
Please refer to the document for exact specifications by model.
