Am79C874 Datasheet - Advanced Micro Devices

Am79C874 NetPHY-1LP Low Power 10/100-TX/FX Ethernet Transceiver

The Am79C874 NetPHY-1LP device provides the physical (PHY) layer and transceiver functions for one 10/100 Mbps Ethernet port. It delivers the dual benefits of CMOS low power consumption and small package size. Operating at 3.3 V, it consumes only 0.3 W. Three power management modes provide options f.
PRELIMINARY Am79C874 NetPHY™-1LP Low Power 10/100-TX/FX Ethernet Transceiver DISTINCTIVE CHARACTERISTICS s 10/100BASE-TX Ethernet PHY device with 100BASE-FX fiber optic support s Typical power consumption of 0.3 W s Sends/receives data reliably over cable lengths greater than 130 meters s MII mode supports 100BASE-X and 10BASE-T s 7-Wire (General Purpose Serial Interface (GPSI)) mode supports 10BASE-T s Three PowerWise™ management modes (from 300 mW typical) Power down: only managemen.

Am79C874 Features

* . .

Am79C874 Datasheet (869.20 KB)

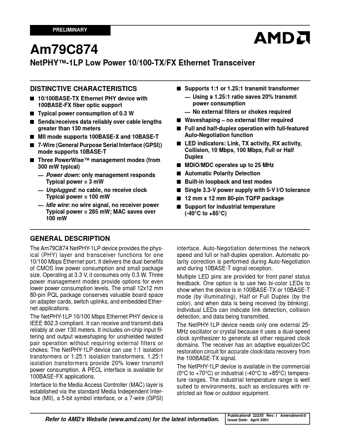

Preview of Am79C874 PDF
Am79C874 Datasheet Preview Page 2 Am79C874 Datasheet Preview Page 3

Datasheet Details

Part number:

Am79C874

Manufacturer:

Advanced Micro Devices

File Size:

869.20 KB

Description:

Netphy-1lp low power 10/100-tx/fx ethernet transceiver.
