AM79C965A Single-chip 10/100 MBPS Pci Ethernet Controller

The PCnet-32 single-chip 32-bit Ethernet controller is a highly integrated Ethernet system solution designed to address high-performance system application requirements. It is a flexible bus-mastering device that can be used in any networking application, including networkready PCs, printers, fax mo.

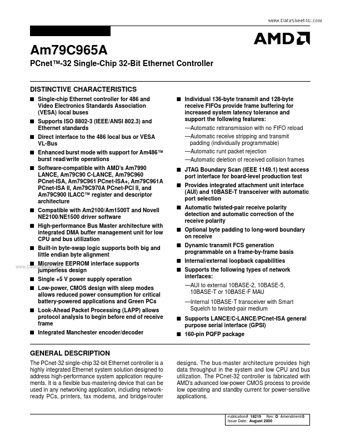

Am79C965A PCnet™-32 Single-Chip 32-Bit Ethernet Controller DISTINCTIVE CHARACTERISTICS s Single-chip Ethernet controller for 486 and Video Electronics Standards Association (VESA) local buses s Supports ISO 8802-3 (IEEE/ANSI 802.3) and Ethernet standards s Direct interface to the 486 local bus or VESA VL-Bus s Enhanced burst mode with support for Am486™ burst read/write operations s Software-compatible with AMD’s Am7990 LANCE, Am79C90 C-LANCE, Am79C960 PCnet-ISA, Am79C961 PCnet-ISA+, Am79C961A P.

AM79C965A Features

* Automatic retransmission with no FIFO reload

* Automatic receive stripping and transmit padding (individually programmable)

* Automatic runt packet rejection

* Automatic deletion of received collision frames s JTAG Boundary Scan (IEEE 1149.1) test access port interface
