AM79C901A

HomePHY Single-Chip 1/10 Mbps Home Networking PHY

AM79C901A Features

* Adjustable power and speed levels 32 bits of reserved in-band messaging piggybacked on Ethernet packet

* Register programmable features: Power control Speed control Performance registers Optional control of Squelch algorithm Major frame timing parameters programmable: ISBI, AID ISBI, pulse

AM79C901A General Description

The Am79C901A HomePHY is a single-chip device that contains both a physical layer (PHY) for 1 Mbps data networking over existing residential telephone wiring based on the specification published by HomePNA and a physical layer for supporting the IEEE 802.3 standard for 10BASE-T. The HomePHY is targe.

AM79C901A Datasheet (761.43 KB)

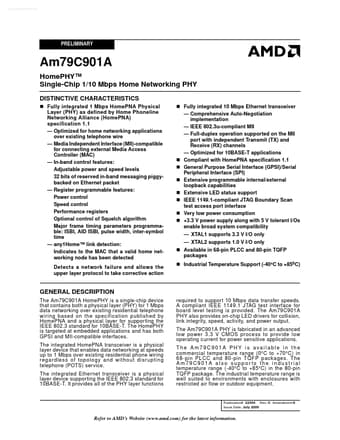

Preview of AM79C901A PDF

Datasheet Details

Part number:

AM79C901A

Manufacturer:

AMD

File Size:

761.43 KB

Description:

Homephy single-chip 1/10 mbps home networking phy.
www.DataSheet4U.com PRELIMINARY Am79C901A HomePHY™ Single-Chip 1/10 Mbps Home Networking PHY DISTINCTIVE CHARACTERISTICS n Fully integrated 1 Mbps H.
