AMS1117-1.5

1A LOW DROPOUT VOLTAGE REGULATOR

AMS1117-1.5 Features

* Three Terminal Adjustable or Fixed Voltages

* 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V

* Output Current of 1A

* Operates Down to 1V Dropout

* Line Regulation: 0.2% Max.

* Load Regulation: 0.4% Max.

* SOT-223, TO-252 and SO-8 package available AMS11

AMS1117-1.5 General Description

TThhee AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the refere.

AMS1117-1.5 Datasheet (506.23 KB)

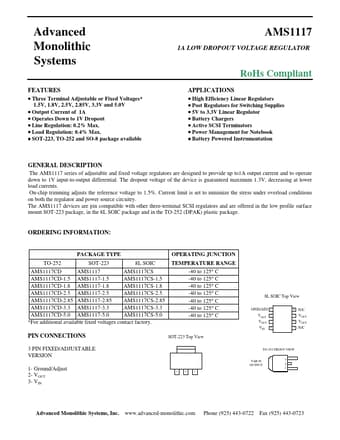

Preview of AMS1117-1.5 PDF

Datasheet Details

Part number:

AMS1117-1.5

Manufacturer:

Advanced Monolithic Systems

File Size:

506.23 KB

Description:

1a low dropout voltage regulator.
