AMS1117

1A Low Dropout Voltage Regulator

AMS1117 Features

* Three terminal Adjustable or Fixed Voltages: 1.25, 1.5V, 2.5V, 2.85V, 3.3V and 5.0V

* 1A maximum output current

* 1.2V of typical dropout voltage

* 0.2% maximum load regulation

* 0.4% maximum line regulation

* -40 to +125°C temperature range

AMS1117 General Description

The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1.2V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the refere.

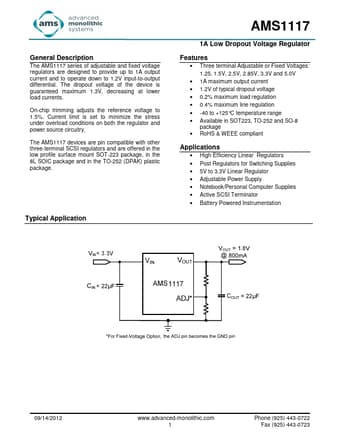

AMS1117 Datasheet (506.23 KB)

Preview of AMS1117 PDF

Datasheet Details

Part number:

AMS1117

Manufacturer:

Advanced Monolithic Systems

File Size:

506.23 KB

Description:

1a low dropout voltage regulator.
