AMS2596 - 3A 30V Step-Down Converter

Description

The AMS2596 is a high efficiency, non-synchronous step down regulator delivering up to 3A of output current making it ideal for medium to heavy load applications.

It is designed to operate with wide input voltage range of 4.5 to 30V while maintaining 1mA of supply current at no load.

Features

  • VIN range: 4.5 - 30V.
  • VOUT range: 1.25V to 7V fixed output Voltage in 100mV steps.
  • Adjustable version output voltage range from 1.2V to 25V.
  • Up to 5A output current.
  • 150kHz switching frequency.
  • 900µA supply current.
  • 80uA standby quiescent current.
  • 100% Duty Cycle.
  • Excellent line and load regulation.
  • Internal Soft Start.
  • Internal compensation.
  • Under voltage lockout.
  • Current Limit.

📥 Download Datasheet

Datasheet Details

Part number AMS2596
Manufacturer Advanced Monolithic Systems
File Size 751.45 KB
Description 3A 30V Step-Down Converter
Datasheet download datasheet AMS2596 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AMS22B Non-Contacting Analog Rotary Position Sensor BOURNS
AMS22S Non-Contacting Analog Rotary Position Sensor Bourns Electronic Solutions
AMS22U Non-Contacting Analog Rotary Position Sensor Bourns Electronic Solutions
AMS2710 PCB pressure sensor Analog Microelectronics
AMS2712 PCB pressure sensor Analog Microelectronics

Other Datasheets by Advanced Monolithic Systems

Part Number Description
AMS2501 1A VERY LOW DROPOUT VOLTAGE REGULATORS
AMS2502 1A VERY LOW DROPOUT VOLTAGE REGULATORS
AMS255 MICROPOWER SHUNT VOLTAGE REFERENCE
AMS2566 PWM buck DC/DC converter
AMS2576 step-down switching regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

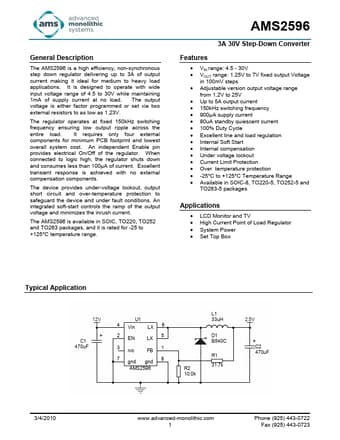

General Description The AMS2596 is a high efficiency, non-synchronous step down regulator delivering up to 3A of output current making it ideal for medium to heavy load applications. It is designed to operate with wide input voltage range of 4.5 to 30V while maintaining 1mA of supply current at no load. The output voltage is either factor programmed or set via two external resistors to as low as 1.23V. The regulator operates at fixed 150kHz switching frequency ensuring low output ripple across the entire load. It requires only four external components for minimum PCB footprint and lowest overall system cost. An independent Enable pin provides electrical On/Off of the regulator. When connected to logic high, the regulator shuts down and consumes less than 100µA of current.
