AMS7536B 3-terminal High Current Low Voltage Regulator

The AMS75XXB series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures.

AMS7536B Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to +18~24V) Applications

* Battery-powered equipment

* Communication equipment

* High output current : 100mA

* Output voltage accuracy: tolerance ±3%

* TO-92, SOT-89

AMS7530B-AdvancedMonolithicSystems.pdf

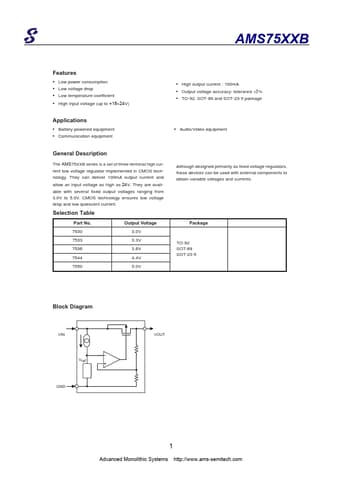

AMS7536B Datasheet Preview — This datasheet PDF includes multiple part numbers: AMS7536B, AMS7530B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AMS7536B, AMS7530B

Manufacturer:

Advanced Monolithic Systems

File Size:

291.69 KB

Description:

3-terminal high current low voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: AMS7536B, AMS7530B.
Please refer to the document for exact specifications by model.
