AMS7544B Datasheet - Advanced Monolithic Systems

3-terminal High Current Low Voltage Regulator

AMS7544B Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to +18~24V) Applications

* Battery-powered equipment

* Communication equipment

* High output current : 100mA

* Output voltage accuracy: tolerance ±3%

* TO-92, SOT-89

AMS7544B General Description

The AMS75XXB series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures.

AMS7544B Datasheet (291.69 KB)

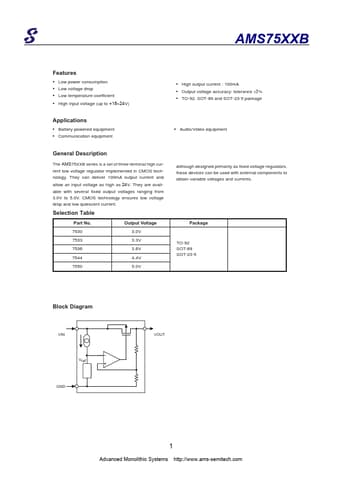

AMS7544B Datasheet Preview — Preview of AMS7544B PDF

Datasheet Details

Part number:

AMS7544B

Manufacturer:

Advanced Monolithic Systems

File Size:

291.69 KB

Description:

3-terminal high current low voltage regulator.
