AMS78L062L

100mA VOLTAGE REGULATOR

AMS78L062L Datasheet (69.71 KB)

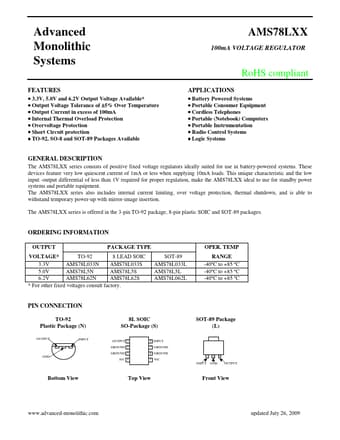

Preview of AMS78L062L PDF Datasheet

Datasheet Details

Part number:

AMS78L062L

Manufacturer:

Advanced Monolithic Systems

File Size:

69.71 KB

Description:

100ma voltage regulator

AMS78L062L Features

* 3.3V, 5.0V and 6.2V Output Voltage Available

* Output Voltage Tolerance of ±5% Over Temperature

* Output Current in excess of 100mA

* Internal Thermal Overload Protection

* Overvoltage Protection

* Short Circuit protection

* TO-92, SO-8

AMS78L062L General Description

The AMS78LXX series consists of positive fixed voltage regulators ideally suited for use in battery-powered systems. These devices feature very low quiescent current of 1mA or less when supplying 10mA loads. This unique characteristic and the low input -output differential of less than 1V required f.
