AMS78L5N, AMS78L033N - 100mA VOLTAGE REGULATOR

Advanced Monolithic Systems

📥 Download Datasheet

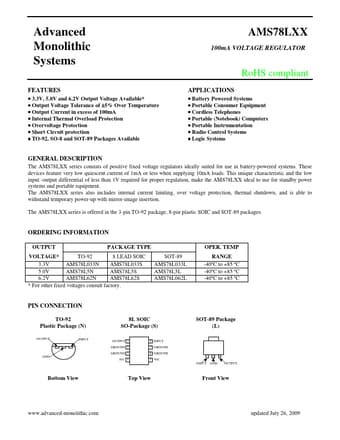

AMS78L5N Datasheet Preview — This datasheet PDF includes multiple part numbers: AMS78L5N, AMS78L033N. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AMS78L5N, AMS78L033N
Manufacturer	Advanced Monolithic Systems
File Size	69.71 KB
Description	100mA VOLTAGE REGULATOR
Datasheet	AMS78L033N-AdvancedMonolithicSystems.pdf
Note	This datasheet PDF includes multiple part numbers: AMS78L5N, AMS78L033N. Please refer to the document for exact specifications by model.

AMS78L5N Product details

Description

The AMS78LXX series consists of positive fixed voltage regulators ideally suited for use in battery-powered systems.

Features

3.3V, 5.0V and 6.2V Output Voltage Available.
Output Voltage Tolerance of ±5% Over Temperature.
Output Current in excess of 100mA.
Internal Thermal Overload Protection.
Overvoltage Protection.
Short Circuit protection.
TO-92, SO-8 and SOT-89 Packages Available AMS78LXX 100mA.
