LS-0880 - AlGaAs LED

Datasheet Summary

Description

The LS-0880 Series are AlGaAs LEDs with peak wavelength of 880nm.

Available in a TO-46 lens cap and a TO-46 glob top.

The lens cap have a narrow viewing angle.

Home automation Smart Appliances Security / surveillances systems IR data transmission Sensor te

Features

  • 880nm Peak Wavelength.
  • Long Life.
  • RoHS Compliant.
  • High Reliability.

📥 Download Datasheet

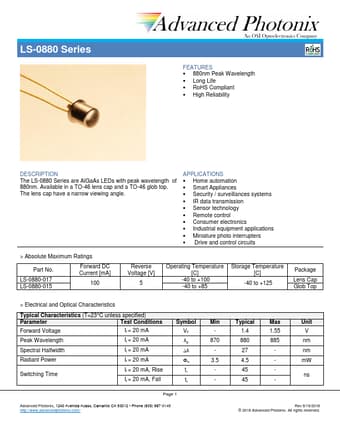

Datasheet preview – LS-0880

Datasheet Details

Part number LS-0880
Manufacturer Advanced Photonix
File Size 380.87 KB
Description AlGaAs LED
Datasheet download datasheet LS-0880 Datasheet
Additional preview pages of the LS-0880 datasheet.

📁 Similar Datasheet

  • LS-3101S - Thyratrons (PerkinElmer Optoelectronics)
  • LS-3229 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-377 - 3.5 Miniboard (Taiwan Commate Computer)
  • LS-4101 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-4111 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-5001 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-5002 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-5101 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-5111 - Thyratrons (PerkinElmer Optoelectronics)
  • LS-SP192DNB74-5 - Surface Mounted Chip LED (HSUKWANG)
Other Datasheets by Advanced Photonix

Full PDF Text Transcription

Click to expand full text
LS-0880 Series FEATURES  880nm Peak Wavelength  Long Life  RoHS Compliant  High Reliability DESCRIPTION The LS-0880 Series are AlGaAs LEDs with peak wavelength of 880nm. Available in a TO-46 lens cap and a TO-46 glob top. The lens cap have a narrow viewing angle. APPLICATIONS  Home automation  Smart Appliances  Security / surveillances systems  IR data transmission  Sensor technology  Remote control  Consumer electronics  Industrial equipment applications  Miniature photo interrupters  Drive and control circuits > Absolute Maximum Ratings Part No.
